The SST26VF016B Serial Quad I/O (SQI) flash device utilizes a 4-bit multiplexed I/O serial interface to boost performance while maintaining the compact form factor of standard serial flash devices. SST26VF016B also support full command-set compatibility to traditional Serial Peripheral Interface (SPI) protocol. Operating at frequencies reaching 104 MHz, the SST26VF016B enables minimum latency execute-in-place (XIP) capability without the need for code shadowing on an SRAM. The device’s high performance and reliability make it the ideal choice for Network Appliance, DSL and Cable Modems, Wireless Lan, Computing, Digital TV, Smart Meter, Server, Set Top Box, Automotive and other Industrial applications. Further benefits are achieved with SST’s proprietary, high-performance CMOS SuperFlash? technology, which significantly improves performance and reliability, and lowers power consumption for high bandwidth, compact designs.

  Serial Interface Architecture- Nibble-wide multiplexed I/O’s with SPI-like serial command structure

  Mode 0 and Mode 3,

  x1/x2/x4 Serial Peripheral Interface (SPI) Protocol and SQI protocol

  Burst Modes- Continuous linear burst, 8/16/32/64 Byte linear burst with wrap-around

  Page-Program- 256 Bytes per page in x1 or x4 mode

  Flexible Erase Capability- Uniform 4 KByte sectors, Four 8 KByte top and bottom parameter overlay blocks, One 32 KByte top and bottom overlay block, Uniform 64 KByte overlay blocks

  Software Write Protection- Individual Block-Locking: 64 KByte blocks, two 32 KByte blocks, and eight 8 KByte parameter blocks

  Low Power Consumption: Active Read current: 15 mA (typical @ 104 MHz), Standby Current: 15 μA (typical), Deep Power-Down Current: 2.5uA (typical)

  SFDP (Serial Flash Discoverable Parameters)

  Packages Available: 8-contact WDFN (6mm x 5mm), 8-lead SOIC, 8-lead SOIJ

  All devices are RoHS compliant

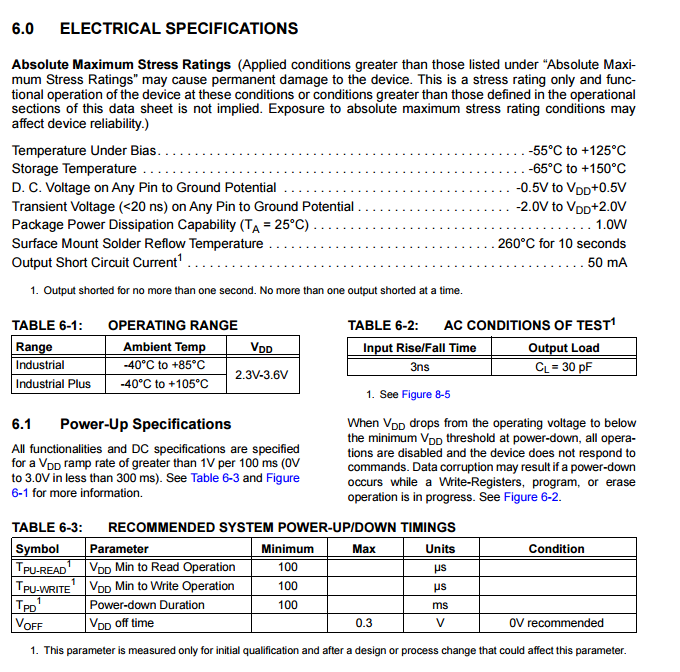

  Temperature Range:

  Industrial -40C to +85C; Extended -40C to +105C

  Automotive Grade 2 and 3 available

Features

 ? Single Voltage Read and Write Operations - 2.7-3.6V or 2.3-3.6V

 ? Serial Interface Architecture - Nibble-wide multiplexed I/O’s with SPI-like serial command structure - Mode 0 and Mode 3 - x1/x2/x4 Serial Peripheral Interface (SPI) Protocol

 ? High Speed Clock Frequency - 2.7-3.6V: 104 MHz max - 2.3-3.6V: 80 MHz max

? Burst Modes - Continuous linear burst - 8/16/32/64 Byte linear burst with wrap-around

? Superior Reliability - Endurance: 100,000 Cycles (min) - Greater than 100 years Data Retention

 ? Low Power Consumption: - Active Read current: 15 mA (typical @ 104 MHz) - Standby Current: 15 μA (typical)

 ? Fast Erase Time - Sector/Block Erase: 18 ms (typ), 25 ms (max) - Chip Erase: 35 ms (typ), 50 ms (max)

? Page-Program - 256 Bytes per page in x1 or x4 mode

 ? End-of-Write Detection - Software polling the BUSY bit in status register

? Flexible Erase Capability - Uniform 4 KByte sectors - Four 8 KByte top and bottom parameter overlay blocks - One 32 KByte top and bottom overlay blocks - Uniform 64 KByte overlay blocks

? Write-Suspend - Suspend Program or Erase operation to access another block/sector ? Software Reset (RST) mode

? Software Write Protection - Individual-Block Write Protection with permanent lock-down capability - 64 KByte blocks, two 32 KByte blocks, and eight 8 KByte parameter blocks - Read Protection on top and bottom 8 KByte parameter blocks
