stm32f103x4和stm32f103x6表現家庭將高性能ARM Cortex M3?- 32位RISC核心在72 MHz的頻率運行，高速嵌入式存儲器（閃存和SRAM的高達32字節至6字節），和增強的I/O和外設連接到兩APB總線的范圍廣泛。所有器件提供兩個12位ADC，三個通用16位定時器和一個PWM定時器，以及標準和先進的通信接口：最多兩i2cs和SPI接口，三個USB串行外設接口，和一個可以。

    低密度的STM32F103xx表現家族經營從2至3.6 V電源供電。這兩–40 + 85°C溫度范圍和–40 + 105°C擴展溫度范圍是可用的。一套全面的省電模式允許低功耗的應用設計。

    低密度表現的STM32F103xx系列包括四種不同的封裝類型的設備：36針64針。這取決于設備的選擇，不同的外設包括，下面的描述了設備在這個家庭提出了完整的概述。

    這些特點使得STM32F103xx系列單片機的低密度表現了廣泛的應用，如電機驅動器，應用控制，醫療和手持設備，PC和游戲外設，GPS平臺，工業應用，PLC，變頻器，打印機，掃描儀，報警系統，可視對講機，和空調系統

• ARM? 32-bit Cortex? -M3 CPU Core

• 72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access

• Single-cycle multiplication and hardware division

• Memories

• 64 or 128 Kbytes of Flash memory

• 20 Kbytes of SRAM

• Clock, reset and supply management

• 2.0 to 3.6 V application supply and I/Os

• POR, PDR, and programmable voltage detector (PVD)

• 4-to-16 MHz crystal oscillator

• Internal 8 MHz factory-trimmed RC

• Internal 40 kHz RC

• PLL for CPU clock

• 32 kHz oscillator for RTC with calibration

• Low-power

• Sleep, Stop and Standby modes

• VBAT supply for RTC and backup registers

• 2 x 12-bit, 1 μs A/D converters (up to 16 channels)

• Conversion range: 0 to 3.6 V

• Dual-sample and hold capability

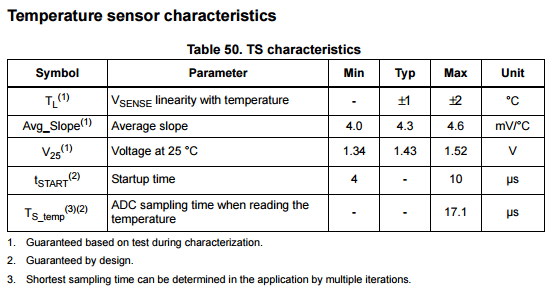

• Temperature sensor

• DMA

• 7-channel DMA controller

• Peripherals supported: timers, ADC, SPIs, I2 Cs and USARTs

• Up to 80 fast I/O ports

• 26/37/51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant

• Debug mode

• Serial wire debug (SWD) & JTAG interfaces

• 7 timers

• Three 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input

• 16-bit, motor control PWM timer with dead-time generation and emergency stop

• 2 watchdog timers (Independent and Window)

• SysTick timer 24-bit downcounter

• Up to 9 communication interfaces

• Up to 2 x I2 C interfaces (SMBus/PMBus)

• Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)

• Up to 2 SPIs (18 Mbit/s)

• CAN interface (2.0B Active)

• USB 2.0 full-speed interface

• CRC calculation unit, 96-bit unique ID

• Packages are ECOPACK?
