    首頁產品索引NCP1397

    NCP1397

    購買收藏
    ?Controller, High Performance, Resonant Mode, with Integrated High Voltage Drivers

    制造商：ON

    中文數據手冊

    產品信息

    The NCP1397 is a high performance controller that can be utilized in half bridge resonant topologies such as series resonant, parallel resonant and LLC resonant converters. It integrates 600 V gate drivers, simplifying layout and reducing external component count. With its unique architecture, including a 500 kHz Voltage Controlled Oscillator whose control mode permits flexibility when an ORing function is required, the NCP1397 delivers everything needed to build a reliable and rugged resonant mode power supply. The NCP1397 provides a suite of protection features with configurable settings to optimize any application. These include: auto-recovery or fault latch-off, brown-out, open optocoupler, soft-start and short-circuit protection. Deadtime is also adjustable to overcome shoot through current. NCV1397 offers an Automotive certified version (AEC-Q100/PPAP)

    • Adjustable minimum switching frequency with 3% accuracy

    • Brown-out input

    • 1 A / 0.5 A Peak Current Sink / Source Drive

    • Timer-based OCP input with auto-recovery

    • Second latched OCP level

    • Adjustable deadtime from 100 ns to 2 us

    • Adjustable soft-start

    優勢特點

    特性 優勢








    • Adjustable minimum switching frequency with 3% accuracy


    • Keeps the converter operation in the right region & simplifies design




    • Brown-out input


    • Simple PFC association




    • 1 A / 0.5 A Peak Current Sink / Source Drive


    • High gate drive capability




    • Timer-based OCP input with auto-recovery


    • Allows transient overload, protects against overpower




    • Second latched OCP level


    • Protects application in case of short circuit




    • Adjustable deadtime from 100 ns to 2 us


    • Prevents shoot-through currents and allows for optimization based on MOSFET characteristics




    • Adjustable soft-start


    • Reduces startup currents

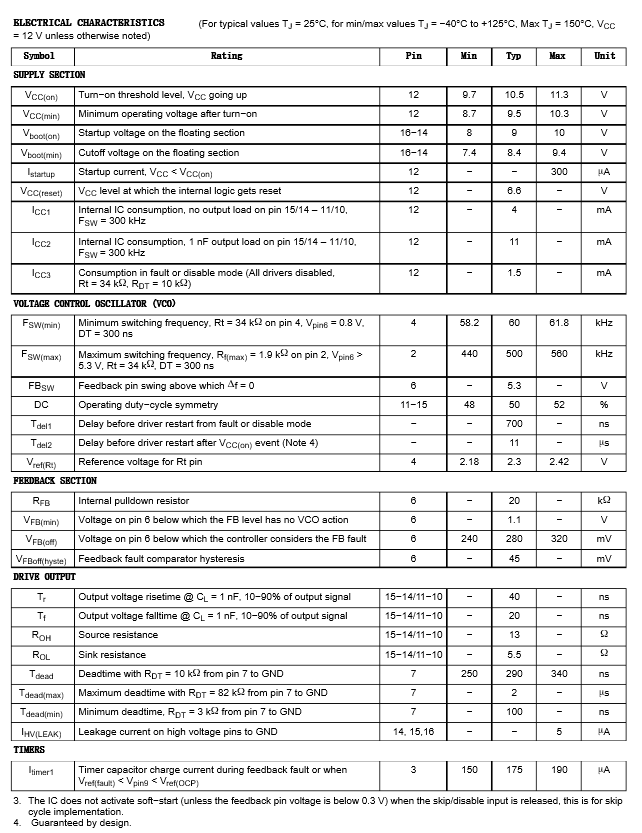

    規格參數


    電路圖、引腳圖和封裝圖

    在線購買

    型號制造商描述購買
    NCV1397BDR2GONNCP1397 是一款高性能控制器，可應用于半橋諧振拓撲結構，如串聯諧振、并聯諧振和 LLC 諧振轉換器。它集成了 600 V 門極驅動器，簡化了布局，減少了外部部件數量。NCP1397 具有獨特的結構，包括一個其控制模式可在需要 OR 運算的情況下實現靈活性的 500 kHz 電壓控制振蕩器，可提供構建可靠耐用的諧振模式電源所需的一切內容。NCP1397 提供了一套保護功能，帶有優化任何應用的可配置設置。其中包括：自動恢復或故障鎖存、欠電壓、開路光耦合器、軟啟動和短路保護。停滯時間也可調節以克服擊穿電流。 NCV1397 提供汽車認證版本 (AEC-Q100/PPAP) 立即購買
    NCV1397ADR2GON 立即購買
    NCP1397ADR2GON離線轉換器 半橋 拓撲 50~500kHz 16-SOIC 立即購買
    NCP1397BDR2GONNCP1397 是一款高性能控制器，可應用于半橋諧振拓撲結構，如串聯諧振、并聯諧振和 LLC 諧振轉換器。它集成了 600 V 門極驅動器，簡化了布局，減少了外部部件數量。NCP1397 具有獨特的結構，包括一個其控制模式可在需要 OR 運算的情況下實現靈活性的 500 kHz 電壓控制振蕩器，可提供構建可靠耐用的諧振模式電源所需的一切內容。NCP1397 提供了一套保護功能，帶有優化任何應用的可配置設置。其中包括：自動恢復或故障鎖存、欠電壓、開路光耦合器、軟啟動和短路保護。停滯時間也可調節以克服擊穿電流。 NCV1397 提供汽車認證版本 (AEC-Q100/PPAP) 立即購買

    技術資料

    標題類型大?。↘B）下載
    A Simple DC SPICE Model for the LLC ConverterPDF474 點擊下載
    SOIC-16 NB, Less Pin 13PDF50 點擊下載
    Understanding the LLC Structure in Resonant ApplicationsPDF416 點擊下載
    Stability Analysis in Multiple Loop SystemsPDF213 點擊下載
    High Performance Resonant Mode Controller with Integrated High-Voltage DriversPDF421 點擊下載
    Implementing a 12 V /240 W Power Supply with the NCP4303B, NCP1605 and NCP1397BPDF2048 點擊下載
    NCP1397_PD.JPGUNKNOW63 點擊下載
    NCP1397_AD.JPGUNKNOW1113 點擊下載
